Product Introduction |
|
|
|
 |
Butterfly Valve |

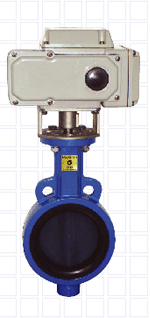

| Electric Midline Butterfly Valve |

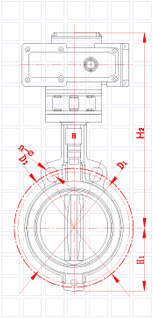

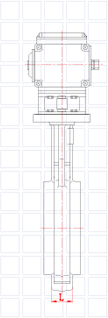

| Outer Size Unit:mm |
Size |
D 1 |
D 2 |
H 1 |
H 2 |
L |
n-¦Õ |
Drive |
mm |
in |
50 |
2¡å |
120 |
125 |
66 |
300 |
42 |
2-19 |
Electric actuator |
65 |
2.5¡å |
138 |
145 |
73 |
310 |
44.7 |
2-19 |
80 |
3¡å |
152 |
160 |
80 |
320 |
45.2 |
2-19 |
100 |
4¡å |
180 |
191 |
102 |
337 |
52.1 |
2-19 |
125 |
5¡å |
210 |
216 |
117 |
347 |
54.4 |
2-19 |
150 |
6¡å |
240 |
240 |
131 |
405 |
55.8 |
2-23 |
200 |
8¡å |
295 |
300 |
164 |
445 |
60.6 |
2-23 |
250 |
10¡å |
350 |
362 |
195 |
475 |
65.5 |
2-23 |
300 |
12¡å |
400 |
432 |
236 |
541 |
76.5 |
2-23 |
350 |
14¡å |
460 |
476 |
263 |
565 |
76.9 |
2-23 |
400 |
16¡å |
515 |
515 |
322 |
666 |
86.5 |
4-28 |
450 |
18¡å |
565 |
565 |
338 |
688 |
105.6 |
4-28 |
|
Remarks:
If you are in needs of above DN500 electric actuator, please contact with the sales department to have a consultation.
1. for size DN500 and larger, please consult our Sales Department
2.The data above is the standard parameter of our company, if you want to employ the actuator from other companies, please contact with our sales department.
3. other actuator configuration are available for discussion
4.The specific reference of the electric actuator, please refer to the illustration of the electric actuator.
|
|
| |
| |
|
|
