Butterfly Valve |

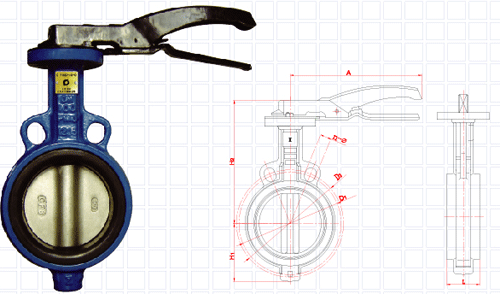

| Hand Lever Wafer Type Centered Disc Butterfly Valve |
| Outer Size Unit:mm |
size |
D 1 |
D 2 |
H 1 |
H 2 |
L |
A |
n-¦Õ |
Driver |
mm |
in |
40 |
1.5¡å |
110 |
110 |
45 |
120 |
33 |
125 |
2-19 |
Hand lever |
50 |
2¡å |
120 |
125 |
66 |
172 |
42 |
240 |
2-19 |
65 |
2.5¡å |
138 |
145 |
73 |
182 |
44.7 |
240 |
2-19 |
80 |
3¡å |
152 |
160 |
80 |
192 |
45.2 |
240 |
2-19 |
100 |
4¡å |
180 |
191 |
102 |
212 |
52.1 |
270 |
2-19 |
125 |
5¡å |
210 |
216 |
117 |
222 |
54.4 |
300 |
2-19 |
150 |
6¡å |
240 |
240 |
131 |
232 |
55.8 |
300 |
2-23 |
200 |
8¡å |
295 |
300 |
164 |
278 |
60.6 |
355 |
2-23 |
|
| |
 |
| |
| |
|
|
