Product Introduction |
|
|
|
 |
Butterfly Valve |

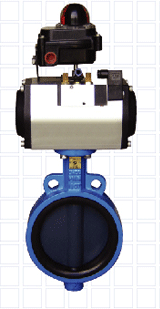

| Pneumatic Midline Butterfly Valve |

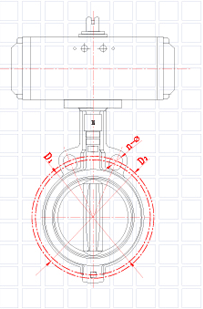

| Outer Size Unit:mm |
Size |
D 1 |
D 2 |
H 1 |
H 2 |
L |
n-¦Õ |
Driver |
mm |
in |
50 |
2¡å |
120 |
125 |
66 |
172 |
42 |
2-19 |
Pneumatic actuator |
65 |
2.5¡å |
138 |
145 |
73 |
182 |
44.7 |
2-19 |
80 |
3¡å |
152 |
160 |
80 |
192 |
45.2 |
2-19 |
100 |
4¡å |
180 |
191 |
102 |
212 |
52.1 |
2-19 |
125 |
5¡å |
210 |
216 |
117 |
222 |
54.4 |
2-19 |
150 |
6¡å |
240 |
240 |
131 |
232 |
55.8 |
2-23 |
200 |
8¡å |
295 |
300 |
164 |
278 |
60.6 |
2-23 |
250 |
10¡å |
350 |
362 |
195 |
436 |
65.5 |
2-23 |
300 |
12¡å |
400 |
432 |
236 |
518 |
76.5 |
2-23 |
350 |
14¡å |
460 |
476 |
263 |
615 |
76.9 |
2-23 |
400 |
16¡å |
515 |
515 |
322 |
639 |
86.5 |
4-28 |
|
Notes:
1. The number in the form is the size of which the pneumatic actuator is under no pressure
2.If you are in need of the accessories for pneumatic actuator, please contact with our sales department.
3.The specific reference of the pneumatic actuator please refer to the illustration of the pneumatic actuator.
|
| |
|
| |
|
|
