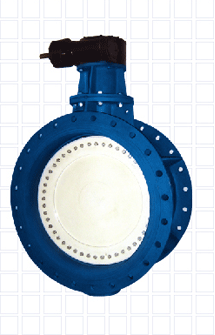

| Flange Resilient-Seated Eccentric Butterfly Valve |
| Summarize |
| Eccentric resilient Seated Flange Valve has adopted offset sealing construction, which can be easily open and close. The moder design, reasonable construction, beautiful effect, light weight, low flow resistant, flow characteristic trend line make this kind of valve widely used in government project, electric&water factory, water treatment and so on. To have the function of shut-off and throtting with bubble-tight. |
| |
| material of Parts |
No |
Names of parts |
Material |
1 |
Body |
Carbon Steel, Cast Iron, Ductile Iron |
2 |
Disc |
Carbon Steel, Stainless Steel, Plated Ductile Iron |
3 |
Stem |
Stainless Steel, Plated Carbon Steel |
4 |
Seat |
EPDM, NBR |
5 |
Stem Packing |
EPDM NBR PTFE |
6 |
Sealing ring |
EPDM NBR PTFE SI FPM |
7 |
Outside Coating |
Epoxy powdern coating |
8 |
Drive |
Worm Gear, Electric drive, Pneumatic Drive |
|
| |
| performance |
Nominal Diameter DN mm(inch) (mm) |
DN100-DN0 |
Nominal Pressure PN Mpa (MPa) |
0.6/1.0/1.6 |
Shell Testing (MPa) |
0.9/1.5/2.4 |
Sealing Testing (MPa) |
0.66/1.1/1.76 |
Working Temperature ( ¡æ ) |
-30-130 ¡æ |
Suitable Mediums |
Fresh Water, Sewage, various oil product, alkali, acid acid, salt, and ect. |
|
| |
|
| |
| |
|
|
